The best choice if you want to protect your car all year round.
Why choose the LAMELINO LITE carport?
Hail, downpours, UV radiation, frozen snow – a CLIMAX carport will protect your car from all of these.
Permanent protection for the car from above
The roof provides a permanent canopy over the parking space and helps to protect the car from the sun, rain and snow.
Load-bearing capacity tested at 200 kg/m²
The roof construction has been tested for a snow load of 200 kg/m². The shelter’s wind resistance is rated at 88 km/h.
Water drainage concealed within the construction
Rainwater is collected by the gutters and drained away through the downpipes.
Open, bespoke construction
The carport maintains convenient access to the car and its dimensions can be adapted to the parking space.
Available versions of the LAMELINO LITE carport

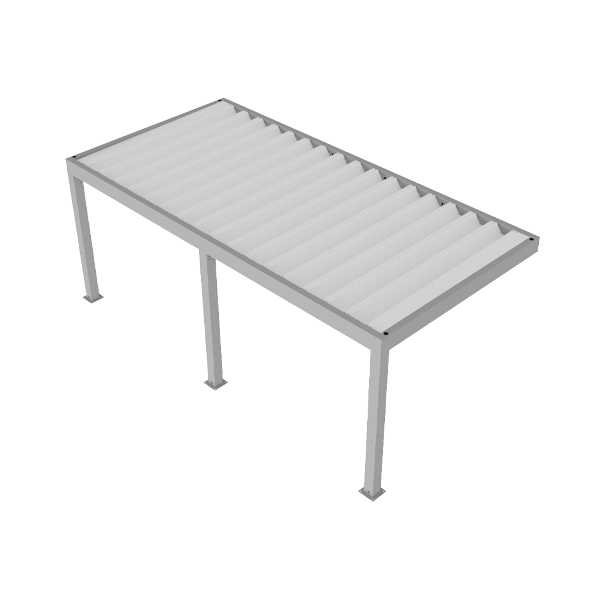

Lamelino Lite wall

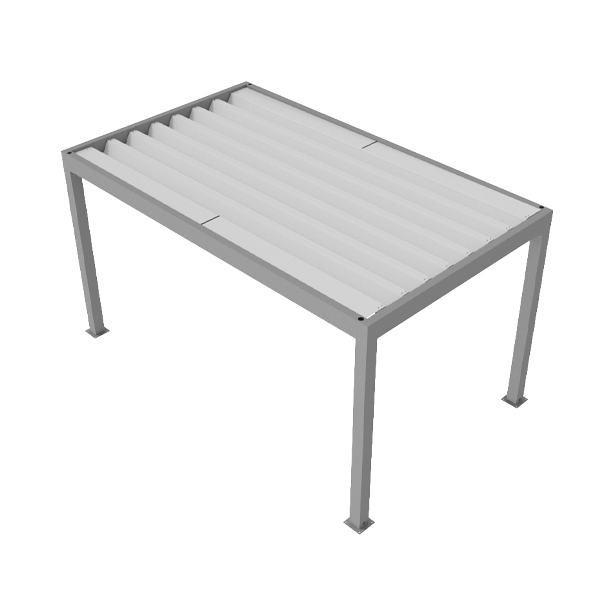

Lamelino Lite single

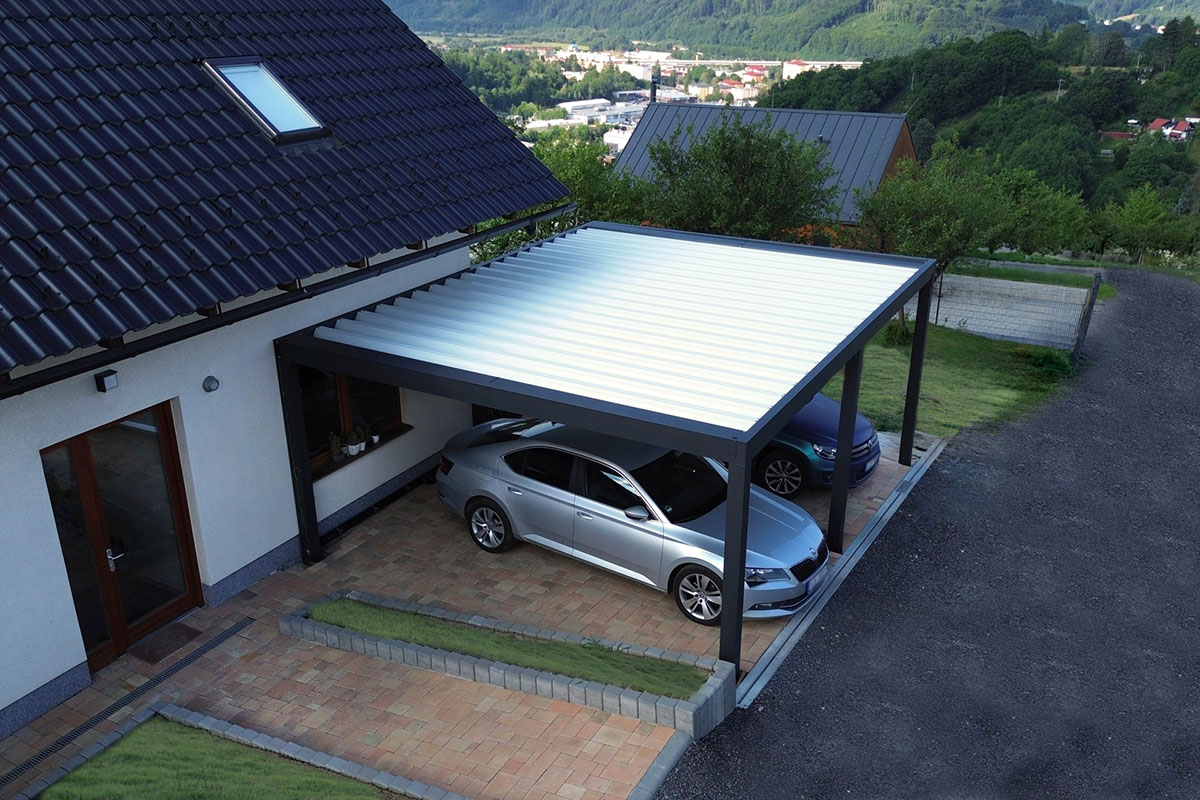

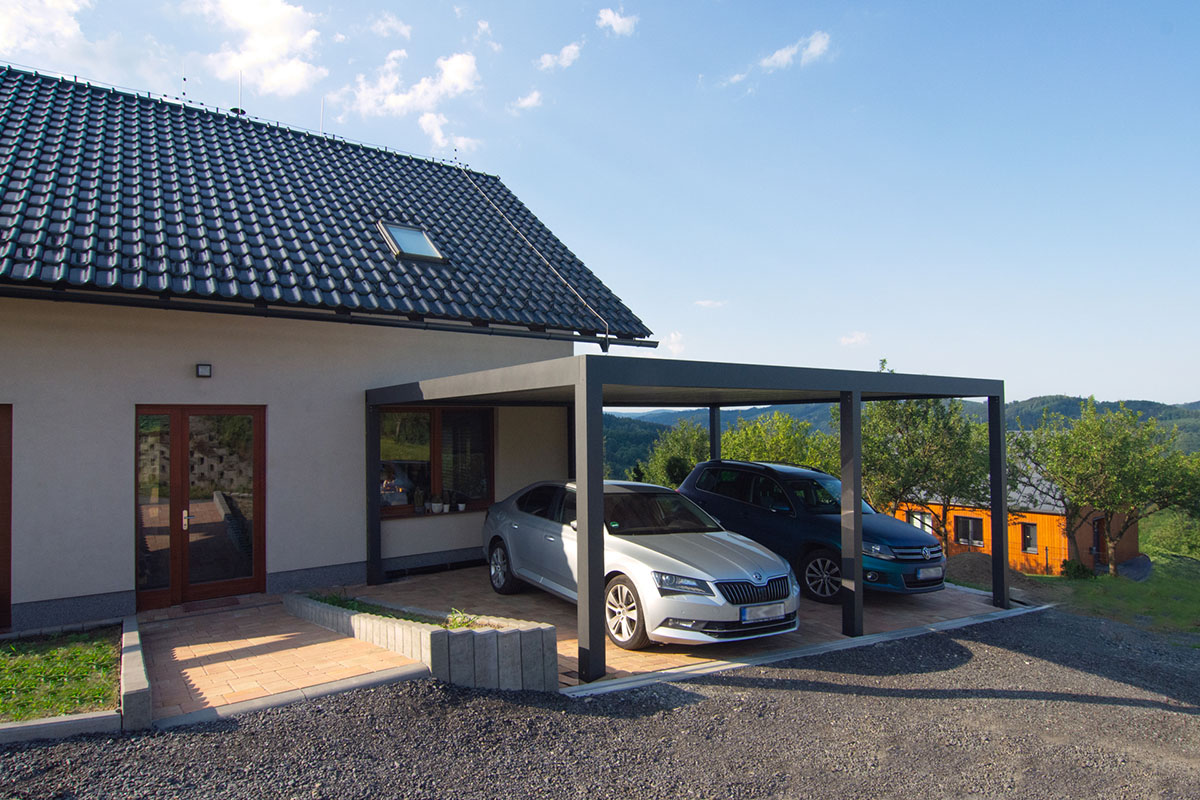

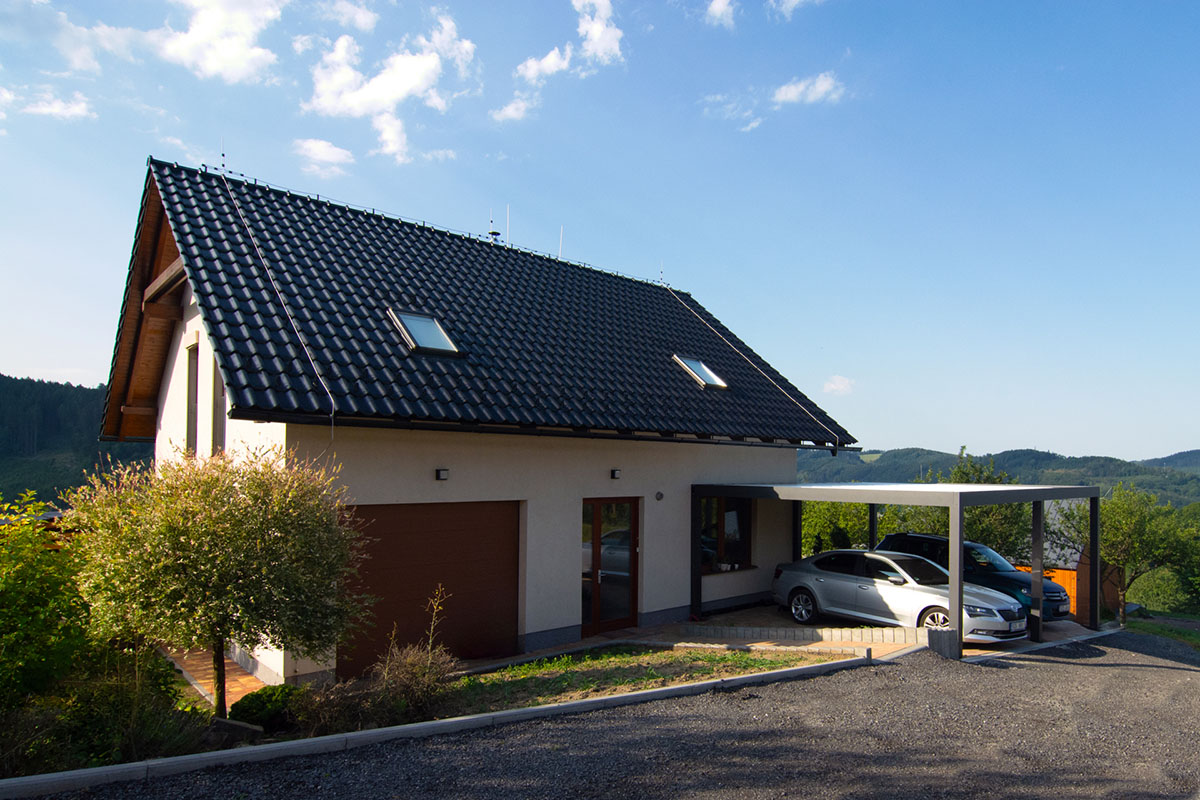

Carport as part of the house
The LAMELINO LITE aluminium carport with a fixed trapezoidal sheet metal roof protects your vehicle from adverse weather conditions. Unlike a simple canopy or carport, this is a robust construction custom-built for a specific parking space.
LAMELINO LITE functions as an open-plan garage with easy access to the car for both people and goods.
More than just a car park
T130 galvanised roofing sheet with a PE 15 surface treatment is characterised by high strength and load-bearing capacity. LAMELINO LITE features 15 x 15 cm support columns / uprights, which ensure high stability.
In the event of damage, it is also possible to replace the roof sheet itself without having to replace the entire canopy.
A precisely made-to-measure shelter
We manufacture the LAMELINO LITE carport to order. The basic module can have a width of 2 to 5 metres, with a projection of 2.05 to 7.05 metres and a support column height of 0.5 to 3.2 metres.
LAMELINO LITE can withstand a snow load of 200 kg/m² and its wind resistance is up to 88 km/h.
The roof is not hermetically sealed to the beams and is guaranteed to be 97 per cent watertight in the event of rain. This allows for partial ventilation from above.

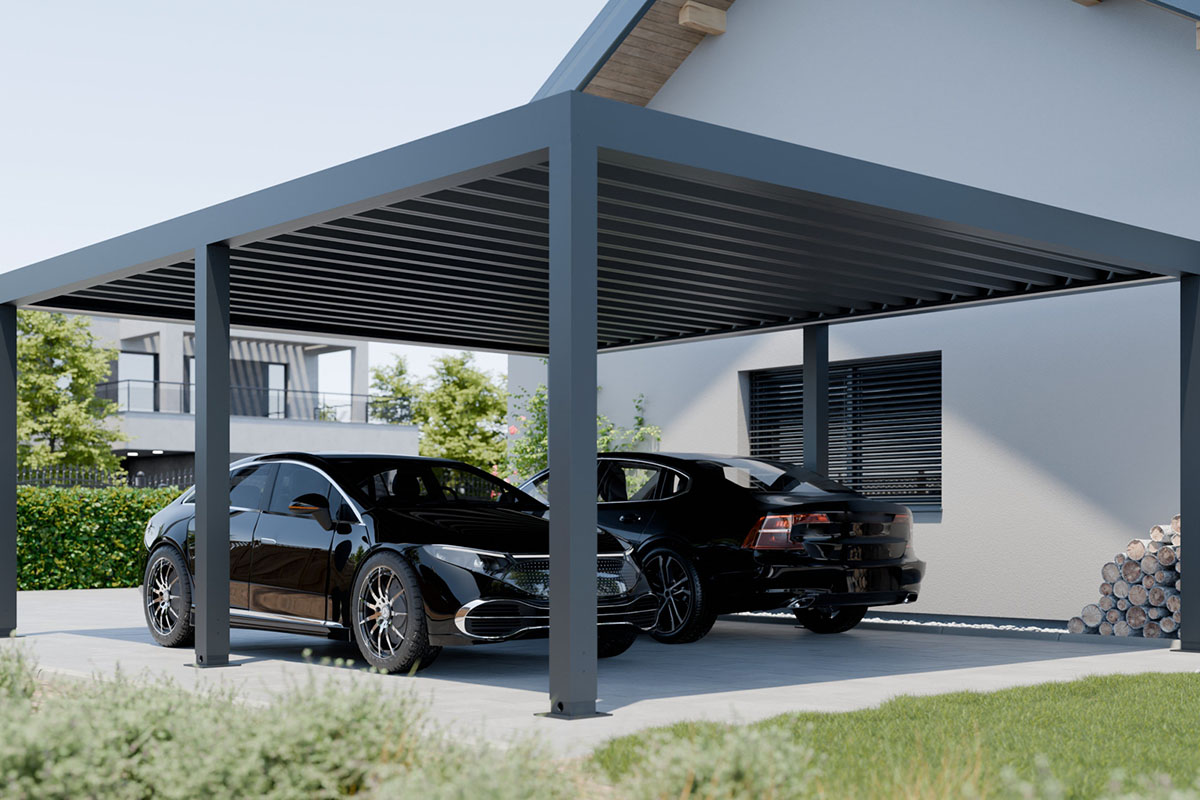

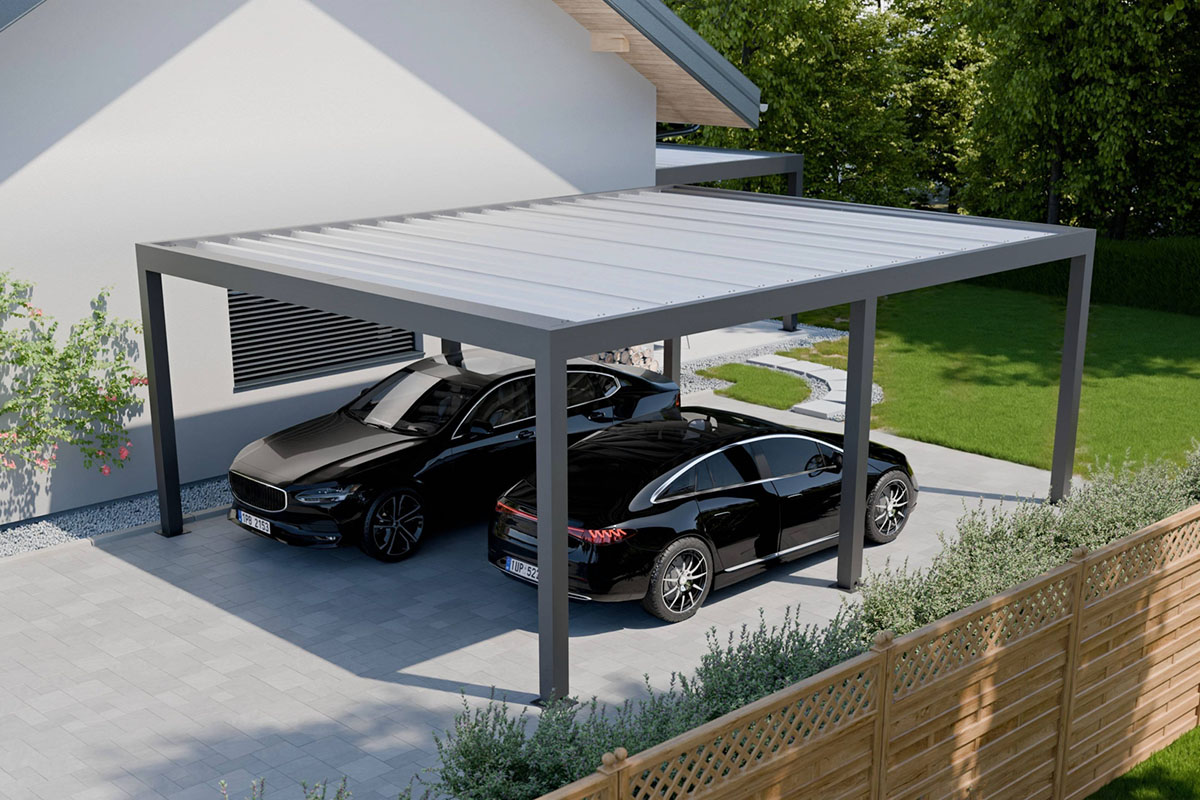

Carport not just for a passenger car

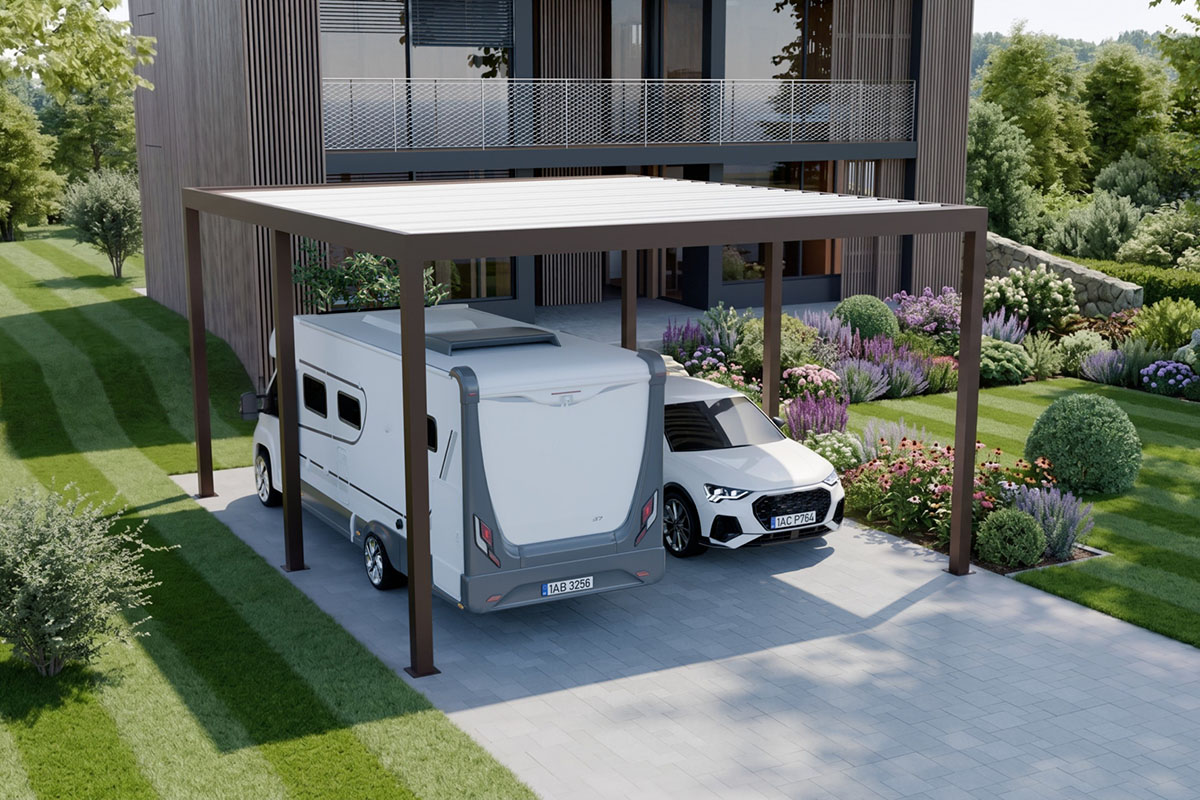

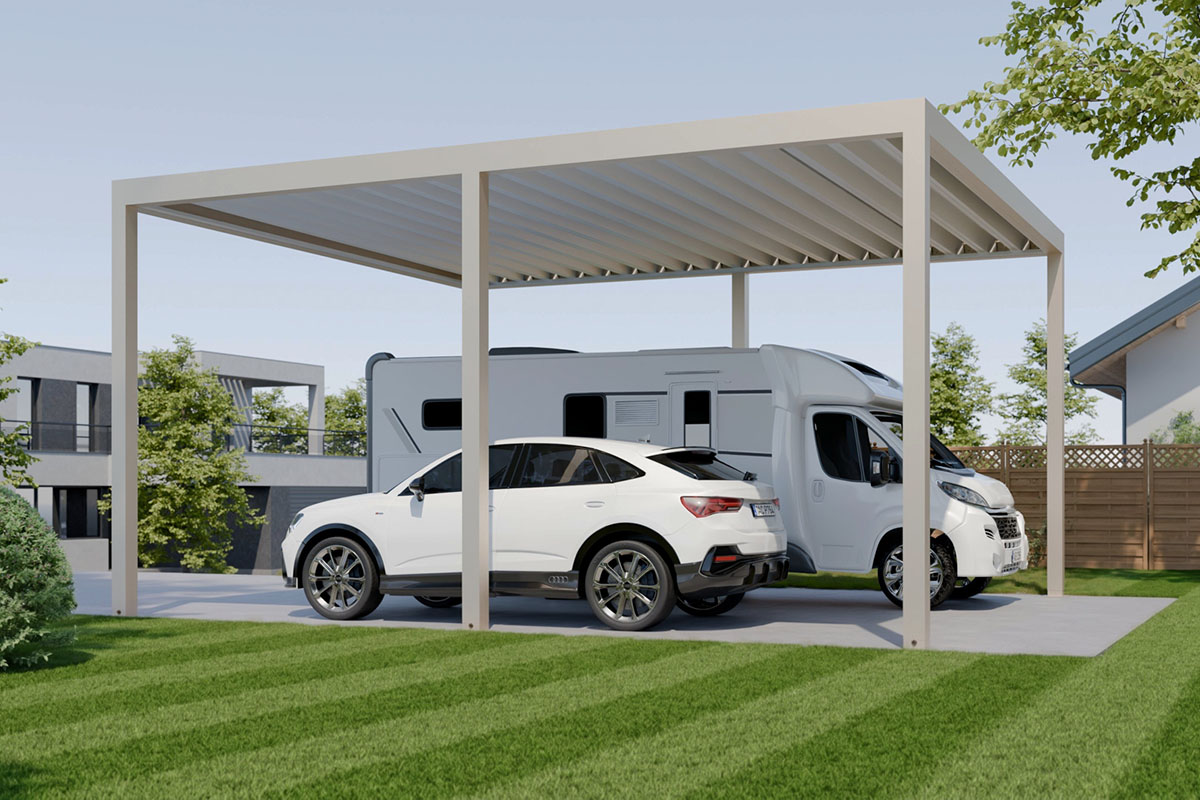

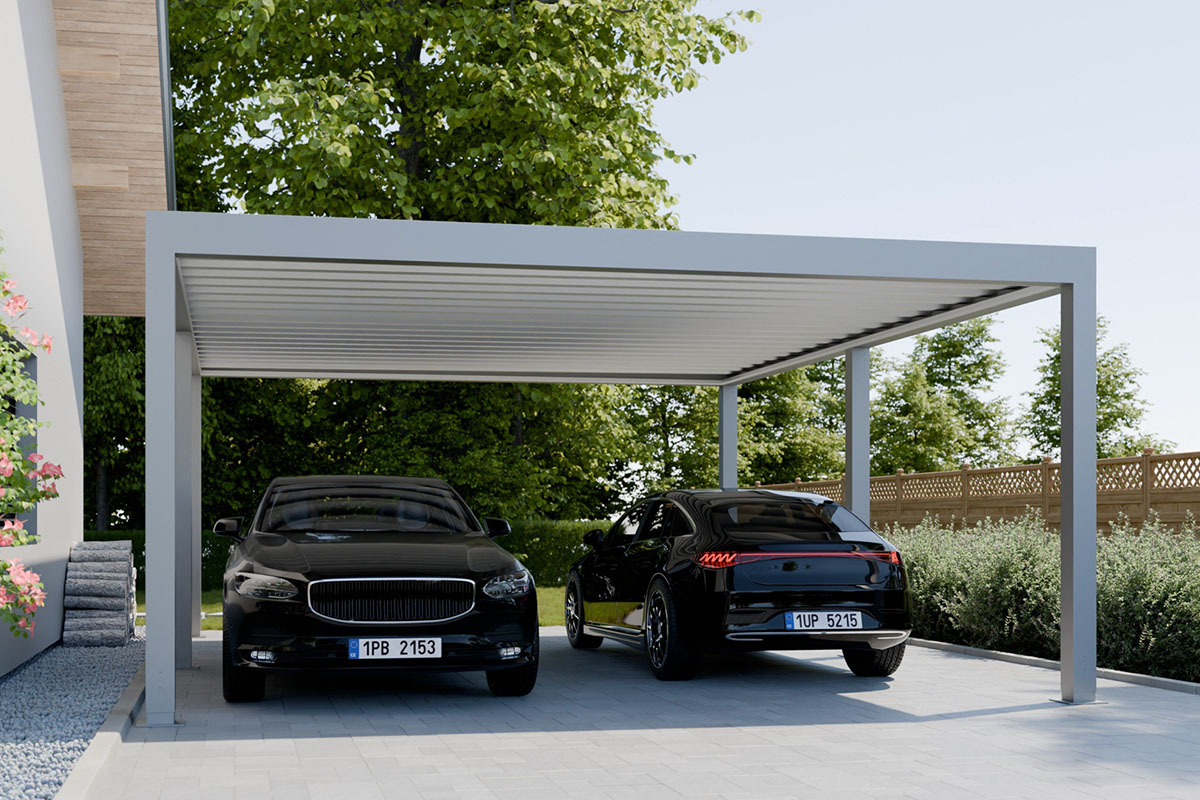

LAMELINO LITE need not be used solely as a carport. Thanks to its bespoke manufacture, its dimensions can be adapted to various uses – from a standard parking space for a passenger car to a larger carport for multiple vehicles, or for a taller camper van or lorry.
The same LAMELINO LITE structural system is also used as a pergola with a fixed roof for covering a terrace. You can use it as a carport, but also to cover any space that requires durable protection from the weather.
A construction thought through down to the last detail
The LAMELINA LITE fixed pitched roof is complemented by integrated guttering. Rainwater then drains away through pipes routed inside the support columns / uprights, meaning the carport does not require any additional visible drains.

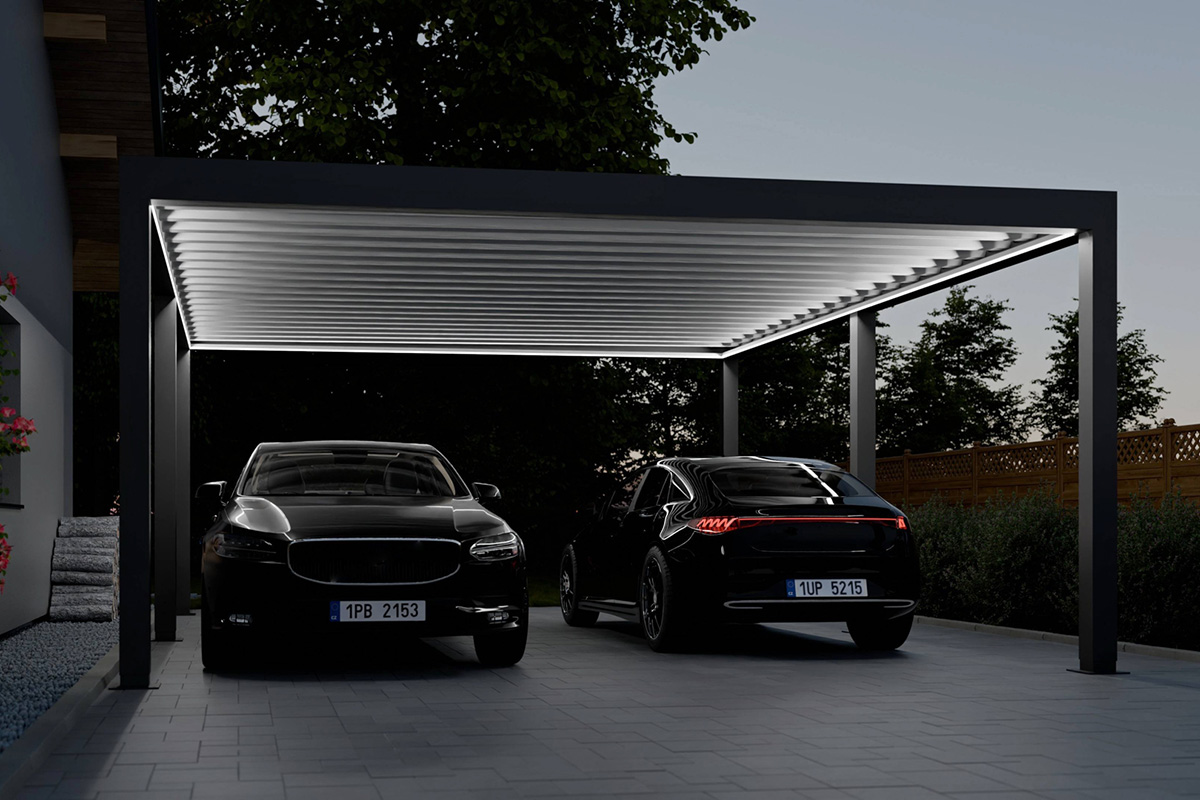

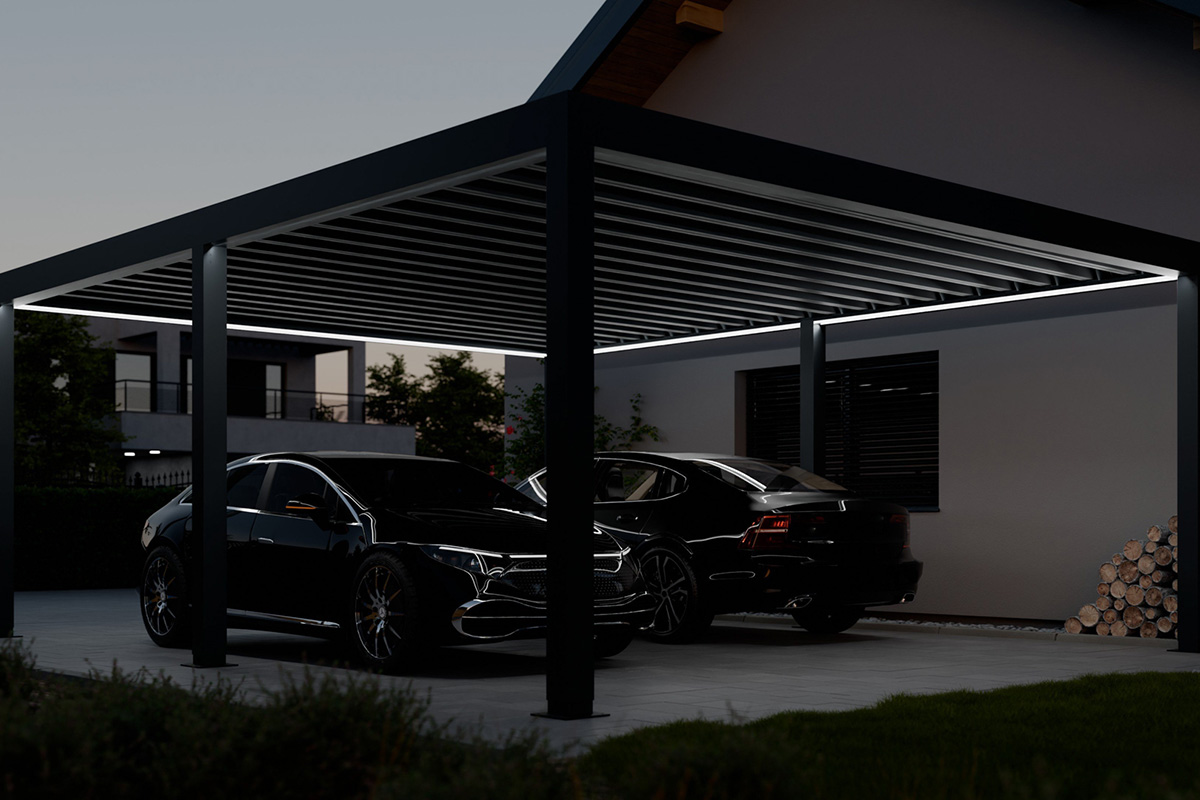

The aluminium carport can also be fitted with LED perimeter lighting integrated into the construction. This means the parking space can be used even after dark without the need for additional lighting. If you wish to increase protection for your car against UV radiation, LAMELINO LITE can also be fitted with side screen roller blinds.
You can also choose from several optional extras
LED lighting
For romantic events and parties with friends. Change colours to fit your taste and mood. You can change the colour spectrum using a remote control or mobile phone.
Side roller screens
Side screens protect you from the wind, your neighbours’ eyes, and the low sun under your pergola. Side shading will help you enjoy your pergola even in colder months.

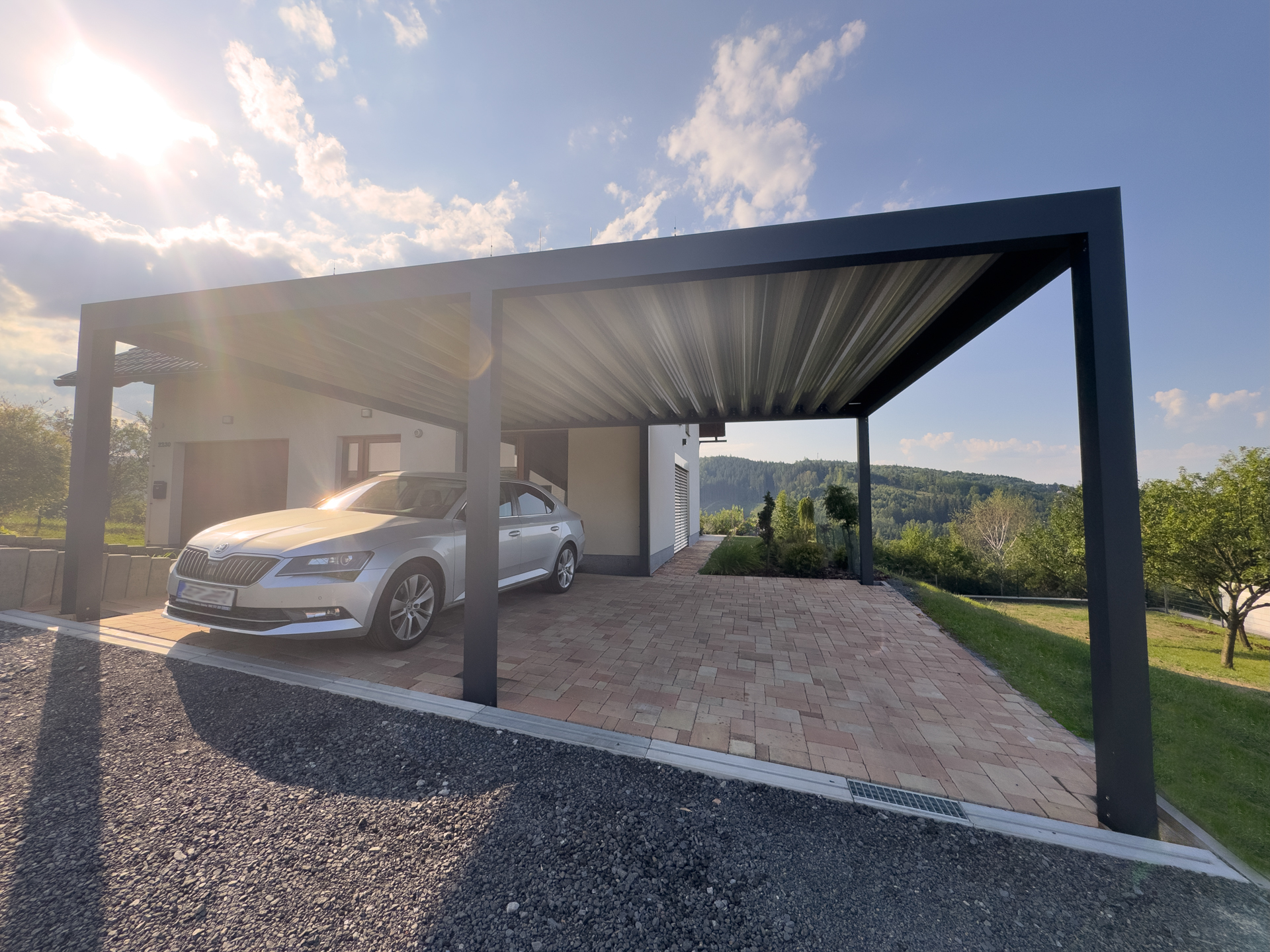

Photo gallery
Get inspired
Take a look at our other projects and be inspired
Just a few steps and your new shade is at home
Choose a product from our range
Browse the options, select the ideal solution for your situation and submit a non-binding enquiry.
A CLIMAX sales representative will contact you
A partner company in your area will draw up a free quotation or discuss your requirements and the installation site with you.
The salesperson will take all the dimensions and prepare a quotation
Based on the actual dimensions, they will propose a suitable version and draw up a quotation.
CLIMAX manufactures the product; a partner installs it
We manufacture bespoke shading systems in Vsetín. Delivery and professional installation are then arranged by a partner company.
Frequently asked questions about the LAMELINO LITE carport
How large can a LAMELINO LITE canopy be?
The basic module can have a width of up to 5 metres and a projection of up to 7.05 metres. The canopy is made to measure according to the specific installation site.
How is rainwater drained from the canopy?
Water from the roof is channelled into the guttering and then through two drainpipes running inside the support columns / uprights.
Can the carport be situated next to the house?
Yes, it is possible to situate it next to the house. However, the specific method of anchoring and design must correspond to the conditions of the building in question and the location where it is to be installed.
Is it possible to light the canopy?
Yes. LAMELINO LITE can be fitted with LED lighting integrated into the construction.
Do I need planning permission for a carport?
Requirements depend on the country, region and the specific installation. The size, height, location and distance from neighbouring properties may all be relevant. We therefore recommend checking the requirements with your local planning or building authority before installation.
Is LAMELINO LITE waterproof?
No. The integrated gutters are not hermetically sealed off from the pergola/pergola space, so 100% protection against water cannot be guaranteed. LAMELINO LITE is guaranteed to be 97% resistant to water leakage during rain.
Can condensation form under the roof?
Yes. Condensation may form on the underside of the trapezoidal sheet metal. The roofing sheet does not have an anti-condensation coating, and condensation cannot be completely eliminated on such a surface.
Is it safe to walk on the roof?
No, walking on a trapezoidal roof is not recommended during maintenance.
Can the canopy be installed on an existing paved surface?
Yes, provided the surface is suitable for securely anchoring the construction. The specific solution must be assessed by the supplier during the site survey.
Is it possible to specify which side the water will drain to?
Yes. When placing an order, you can select the roof pitch and specify the appropriate side for drainage.
Does the carport require regular maintenance?
Yes, but it is not complicated. Above all, it is necessary to regularly check and clean the gutters and drains. It is recommended to carry out a check at least before the start and after the end of the season.
